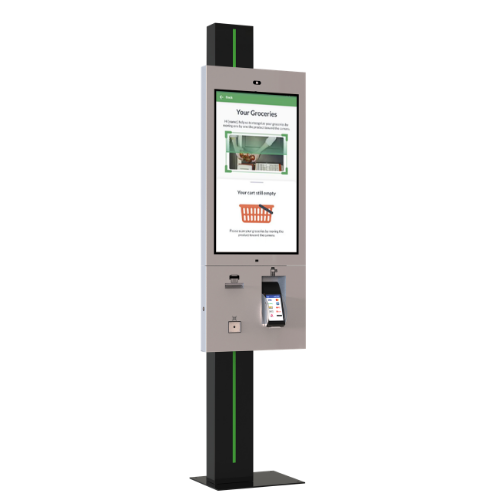

Edirne is designed for fast, accessible self-order journeys. Its user-friendly touch interface helps customers review products, customize orders and complete transactions independently.

Available in 27-inch and 32-inch configurations, the kiosk combines a compact commercial design with payment, NFC, receipt printing, barcode reading and optional smart sensor integration.

Size :

Resolution :

Brightness :

BROCHURE GET OFFER
24/7 Commercial Operation

24/7 Commercial Operation

Designed for dependable daily use in busy self-order environments.

Sleek Design

Sleek Design

A modern kiosk form that fits restaurant, retail and service environments.

Manufactured in Türkiye

Manufactured in Türkiye

Developed and manufactured in Türkiye with commercial-grade construction.

Customizable

Customizable

Body color, logo placement and hardware configuration can be adapted to the project.

Flexible Platform

Flexible Platform

Supports configurable Android or Windows-based self-order applications.

Clear Interactive Display

Clear Interactive Display

High-visibility touch display keeps menu and transaction steps easy to follow.

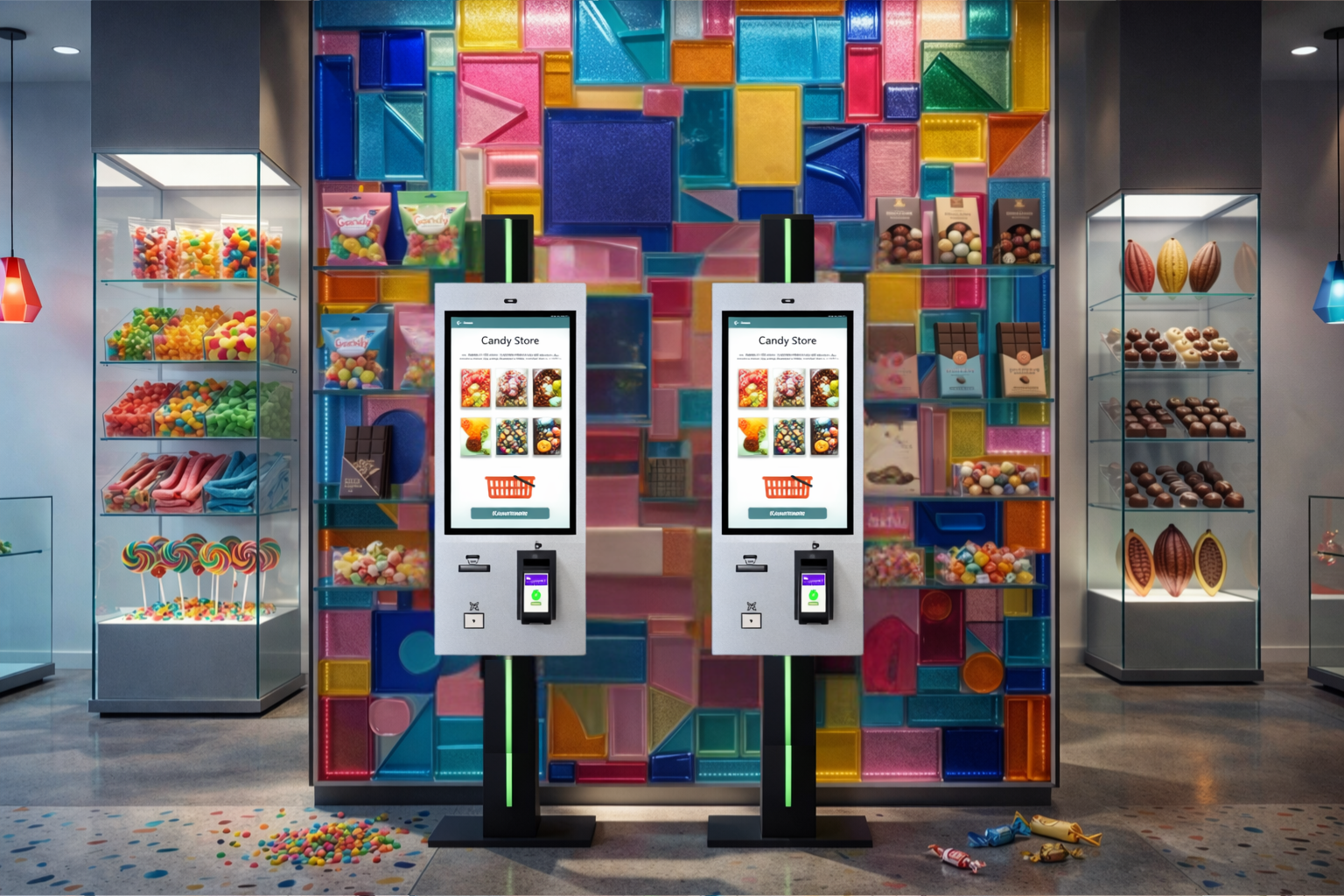

Fast and Fluid Ordering

Reduce queues with an intuitive touch interface that guides customers through menu selection, customization and payment.

Edirne

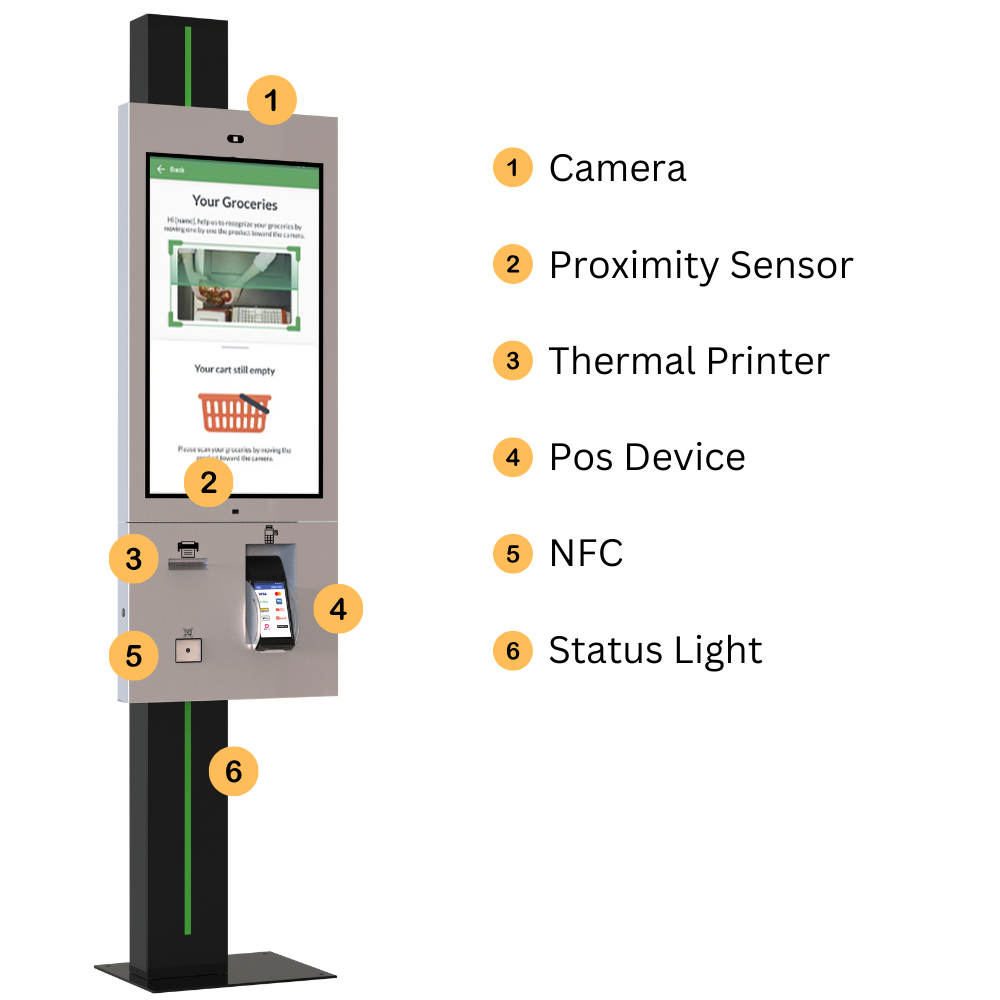

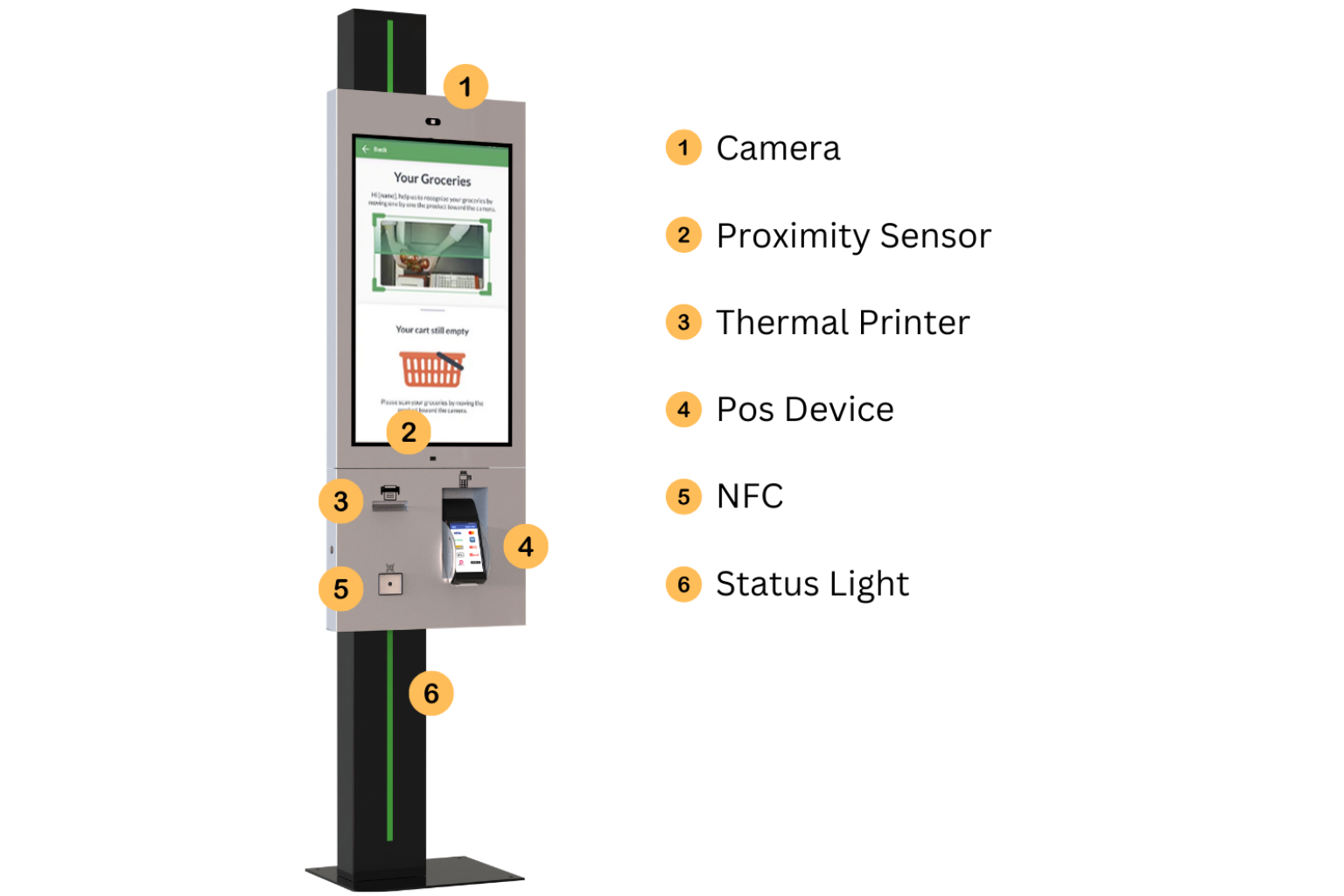

Integrated Payment Hardware

Combine POS, NFC, thermal printing and barcode functions in one organized customer journey.

Edirne

Smart Interaction and Customization

Proximity sensor, camera and corporate color options help adapt the kiosk to the application and brand.

Edirne

Model Code

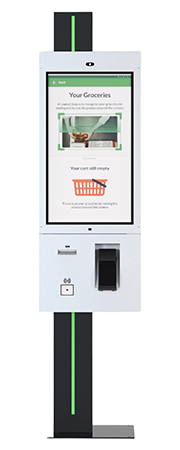

27": KSSA270EA
32": KSSA320MA

Model Code

27": KSSA270EA
32": KSSA320MA

Panel Size

27": 27″
32": 32″

Resolution

1080 × 1920

Brightness (Typ.)

27": 300 cd/m²
32": 400 cd/m²

Contrast

27": 1000:1 (Typ.) (TM)
32": 1200:1 (Typ.) (TM)

Viewing Angle (H × V)

178° × 178°

Response Time (G-to-G)

27": 14 ms (G to G)
32": 8 ms (G to G)

Active Display Area (mm)

27": 597.89 (H) × 336.31 (V)
32": 698.40 (H) × 392.85 (V)

Touch Technology

Projected Capacitive

Touch Points

10-point Multi-touch

Glass Hardness

6H (min.)

CPU

Quad Core

RAM

4GB

Storage

32GB

Operating System

Android 11

I/O

HDMI, USB, Ethernet, Wi-Fi

Power Requirement

AC 100–240 V~ (±10%), 50/60 Hz

Power Consumption (Avg.)

27": 22W
32": 47W

Standby Mode

<0.5W

Operation Life

24/7 – 50,000 hours

Working Conditions

Operation: 0–50°C | Storage: -20–60°C

Humidity

10–80%

Unit Size (W × H × D)

27": 1089 × 485 × 150 mm
32": 1200 × 550 × 150 mm

Unit Package Size

27": 1160 × 520 × 320 mm
32": 1270 × 620 × 320 mm

Product Weight

27": 40 kg
32": 45 kg

Package Weight

27": 45 kg
32": 50 kg

Stand Size

27": 698 × 260 × 105 mm
32": 587 × 300 × 105 mm

Stand Package Size

27": 780 × 350 × 470 mm
32": 670 × 210 × 470 mm

Stand Weight

27": 22 kg
32": 25 kg

Audio

8Ω, 5W × 2

Thermal Printer

80 mm

1D/2D Barcode Reader

640 × 480p, 30 scans/sec

Customization

Floor stand, logo and brand color customization

Package Contents

Easy Installation Guide, Warranty Document, Power Cable

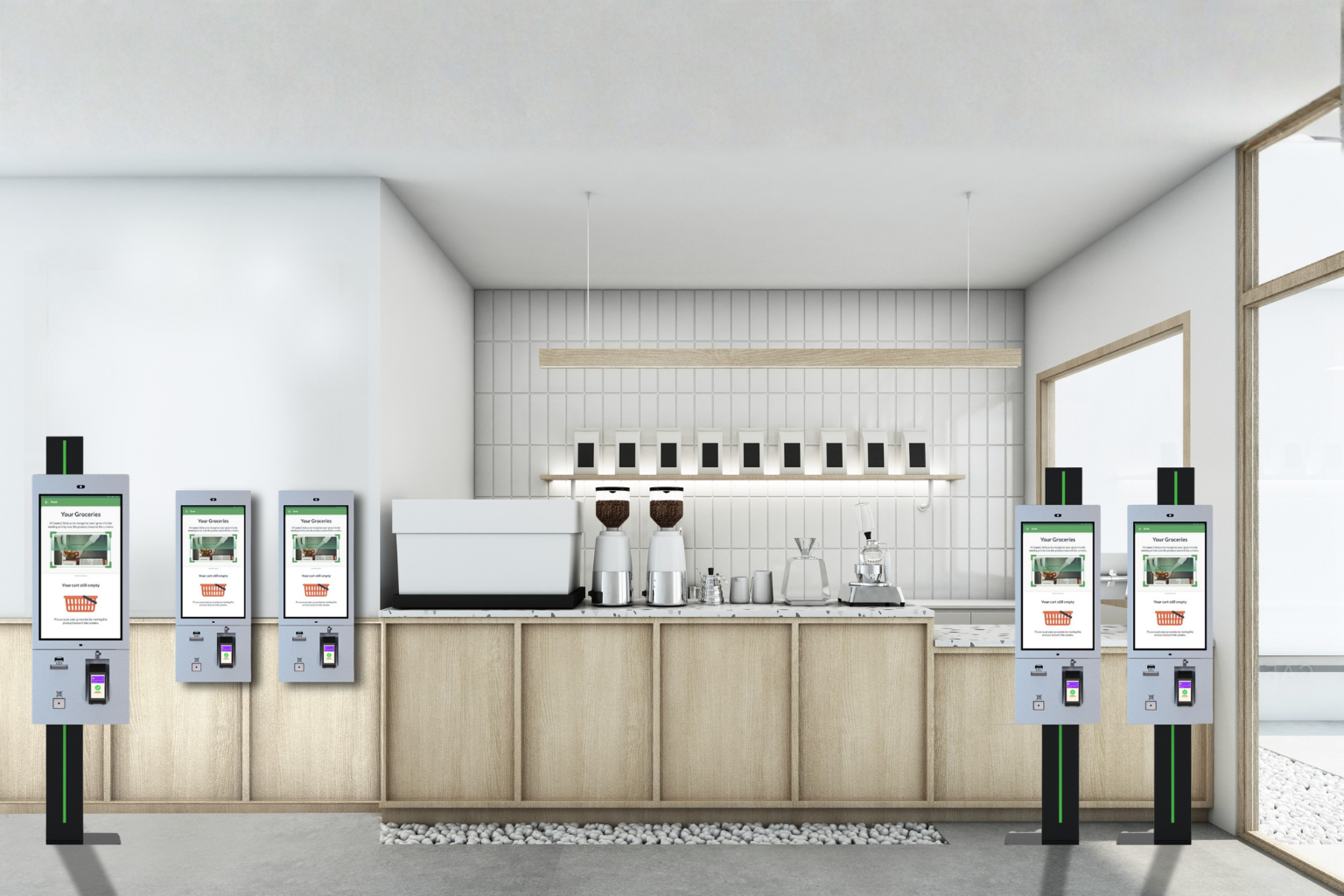

Application Images
