Konya

Konya supports independent ordering through a clear portrait touch display and a compact, adaptable kiosk structure. It is suitable for food ordering, ticketing and customer-service applications.

The 21.5-inch and 23.8-inch variants provide a consistent digital journey while allowing the screen size to be selected according to the installation area.

Size :

21.5"

Resolution :

1080*1920(9:16)

Brightness :

500nit

BROCHURE GET OFFER

24/7 Commercial Operation

Designed for dependable daily use in busy self-order environments.

Sleek Design

A modern kiosk form that fits restaurant, retail and service environments.

Manufactured in Türkiye

Developed and manufactured in Türkiye with commercial-grade construction.

Customizable

Body color, logo placement and hardware configuration can be adapted to the project.

Flexible Platform

Supports configurable Android or Windows-based self-order applications.

Clear Interactive Display

High-visibility touch display keeps menu and transaction steps easy to follow.

Flexible Self-Service Platform

Suitable for restaurant ordering, ticket selection and customer-service software applications.

Two Screen Size Options

Choose 21.5-inch or 23.8-inch according to visibility, interaction and installation requirements.

Brand-Ready Installation

The kiosk body, screen content and payment configuration can be adapted to the project.

Model Code

Not published on the current public page

Panel Size

21.5": 21.5″
23.8": 23.8″

Resolution

1080 × 1920

Brightness (Typ.)

500 cd/m²

Contrast

1000:1 (Typ.) (TM)

Viewing Angle (H × V)

178° × 178°

Response Time (G-to-G)

14 ms (G to G)

Active Display Area (mm)

21.5": 476.64 (H) × 268.11 (V)
23.8": 527.04 (H) × 296.46 (V)

Touch Technology

Projected Capacitive

Touch Points

10-point Multi-touch

Glass Hardness

6H (min.)

CPU

Quad Core

RAM

4GB

Storage

32GB

Operating System

Android

I/O

HDMI, USB, Ethernet, Wi-Fi

Power Requirement

AC 100–240 V~ (±10%), 50/60 Hz

Standby Mode

<0.5W

Operation Life

24/7 commercial operation

Working Conditions

Operation: 5–35°C | Storage: -25–65°C

Humidity

10–80%

Audio (Optional)

8Ω, 5W × 2

Thermal Printer

58 mm

Customization

Floor stand, logo and brand color customization

Package Contents

Easy Installation Guide, Warranty Document, Power Cable

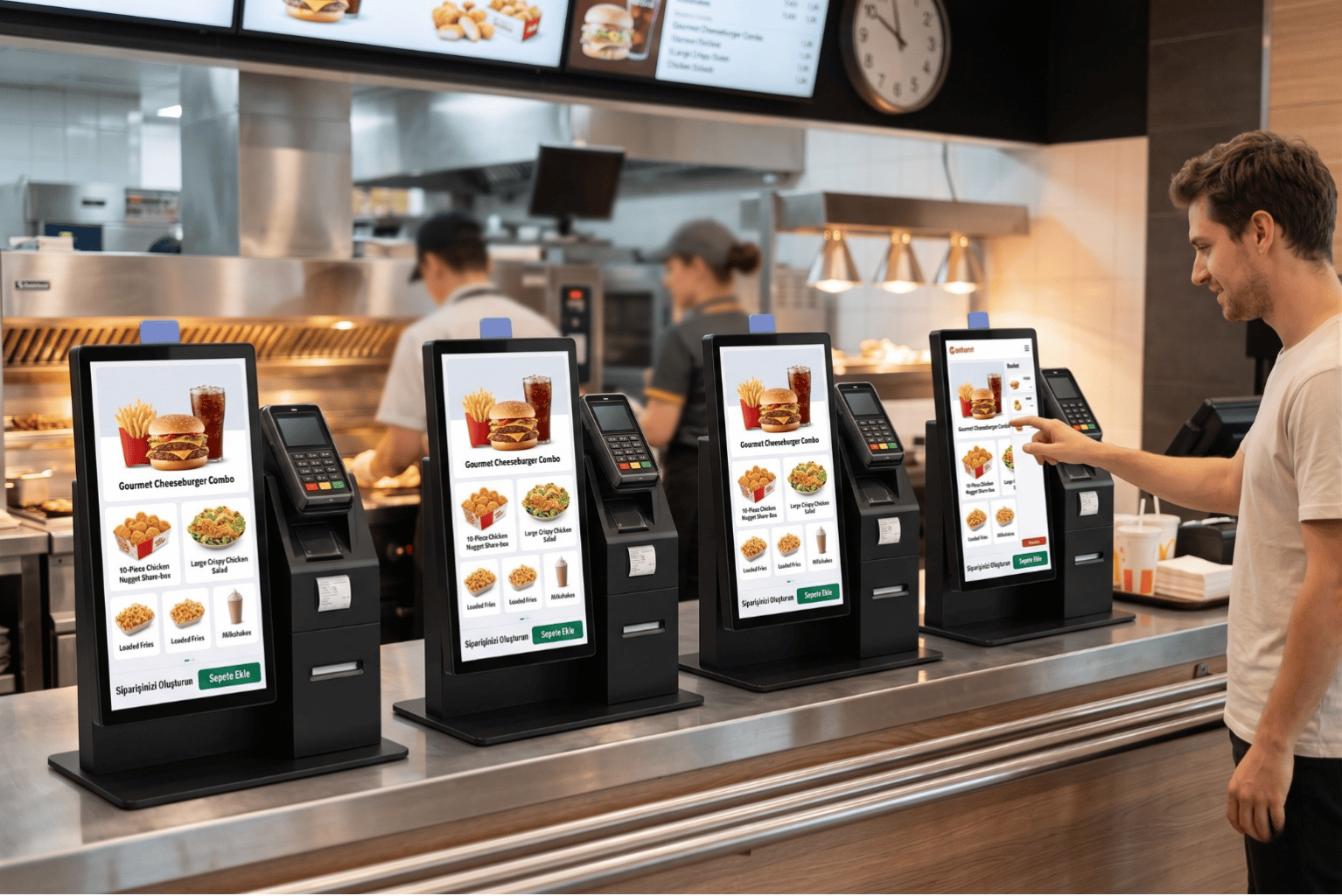

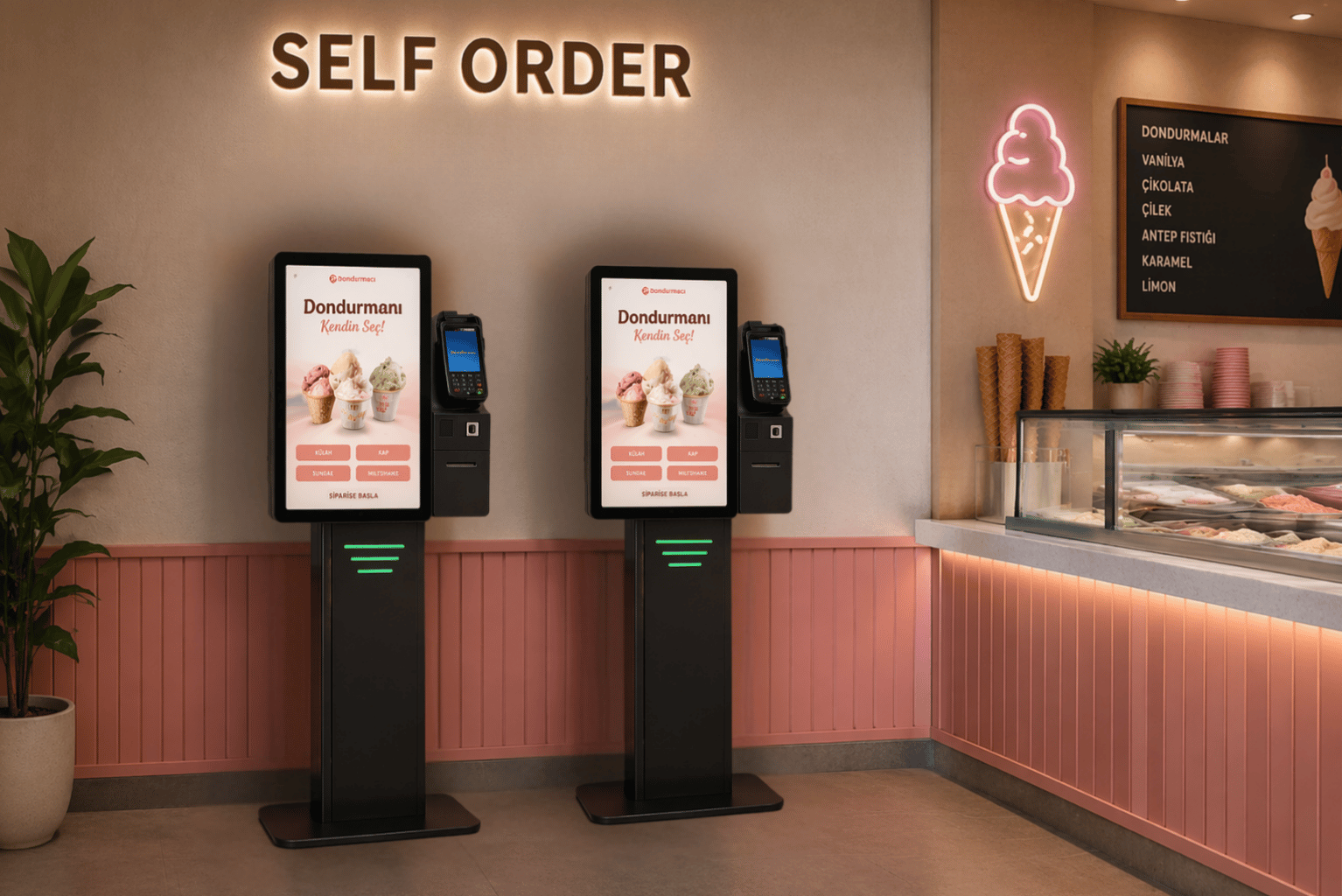

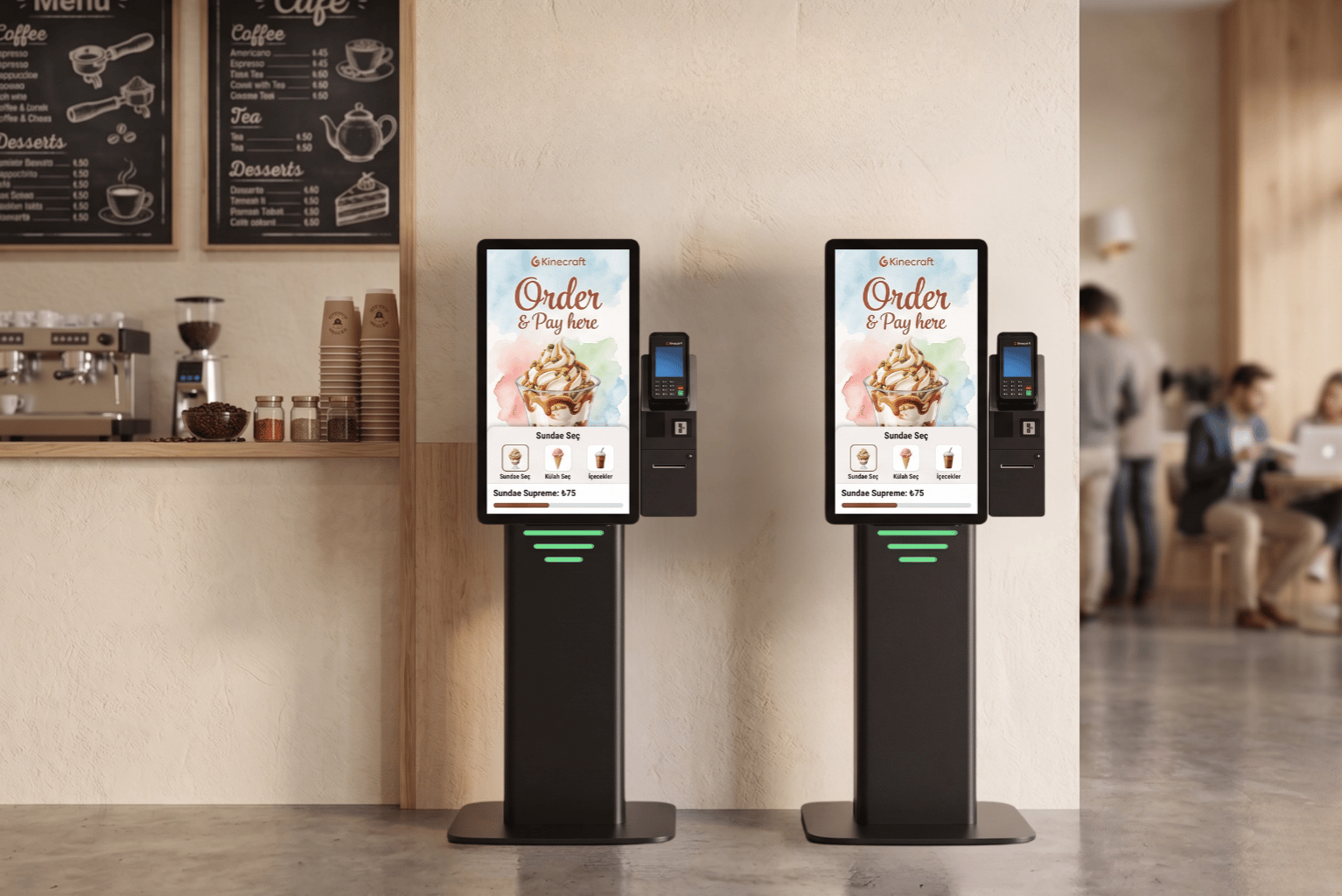

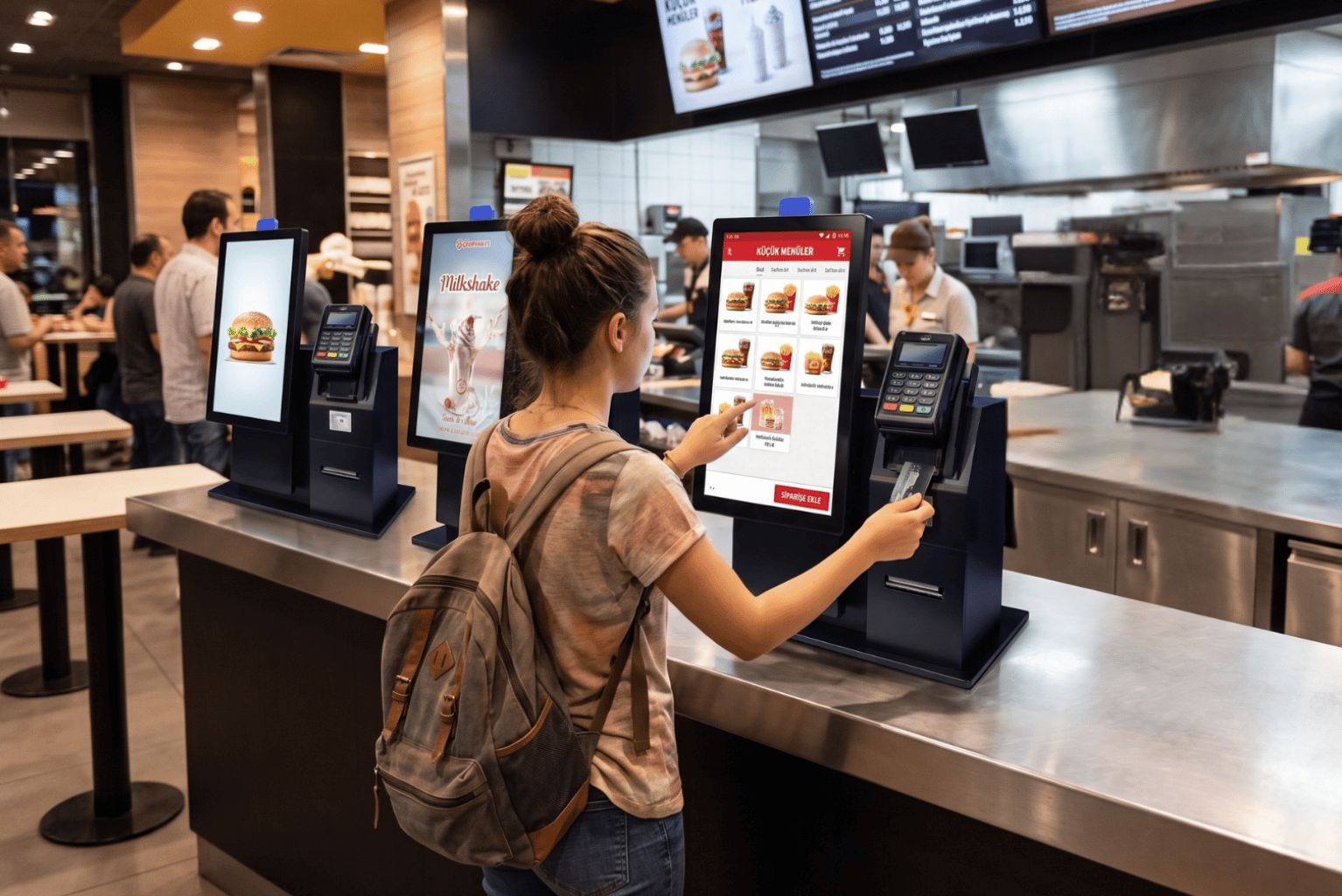

Application Images
