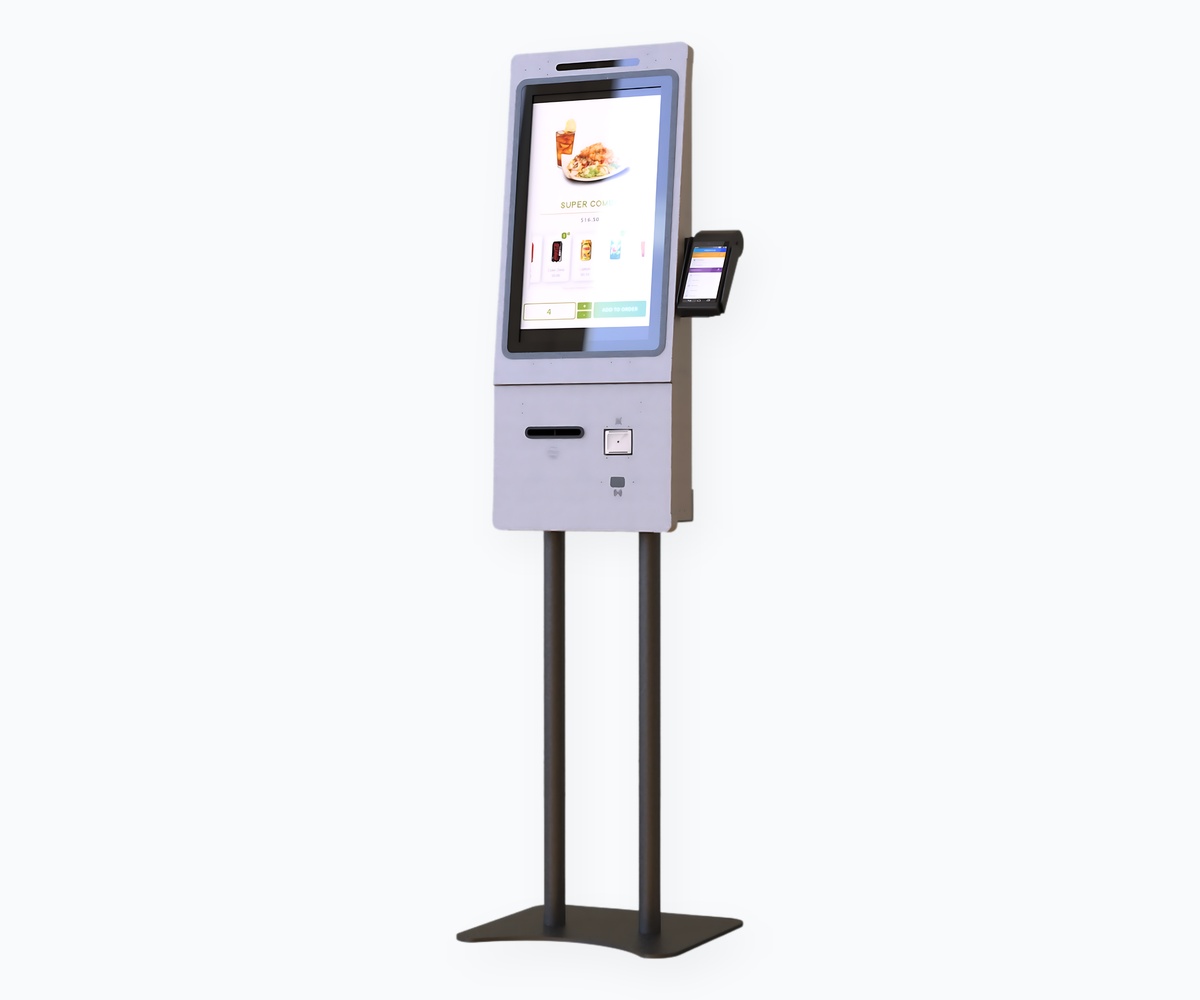

Mersin is a compact self-service kiosk family developed for faster and more independent customer transactions. Its slim floor-standing structure fits comfortably into cafés, restaurants, grocery stores and modern retail areas, while the portrait touchscreen supports product discovery, order customization and guided payment steps.

Available in 21.5-inch and 23.8-inch variants, Mersin combines projected-capacitive touch, a reliable Android platform and support for key peripherals such as POS, thermal printing, barcode reading, NFC and camera integration. This makes it suitable as a complete self-service point rather than a simple display.

The modular structure also supports project-specific adaptation. Payment hardware, software functions, shelf options and branding details can be configured according to the operating environment.

Size :

Resolution :

Brightness :

BROCHURE GET OFFER
Retail-Focused Design

Retail-Focused Design

A compact floor-standing structure fits comfortably into cafés, restaurants, grocery stores and modern retail areas.

Efficient Processing

Efficient Processing

The guided interface supports simple purchases and multi-item orders while reducing queue time and staff assistance.

Secure Transactions

Secure Transactions

Contactless cards, mobile payment support and immediate receipt output create a fast and dependable payment journey.

Easy Software Updates

Easy Software Updates

The commercial Android platform can be maintained and updated as workflows, integrations and security requirements evolve.

Adaptable Design

Adaptable Design

Payment hardware, loyalty readers, peripherals, corporate colors and software functions can be configured for each project.

Shelf Option

Shelf Option

Optional shelf and accessory configurations provide additional space for products, bags or transaction-related items.

Fast and Intuitive Self-Service

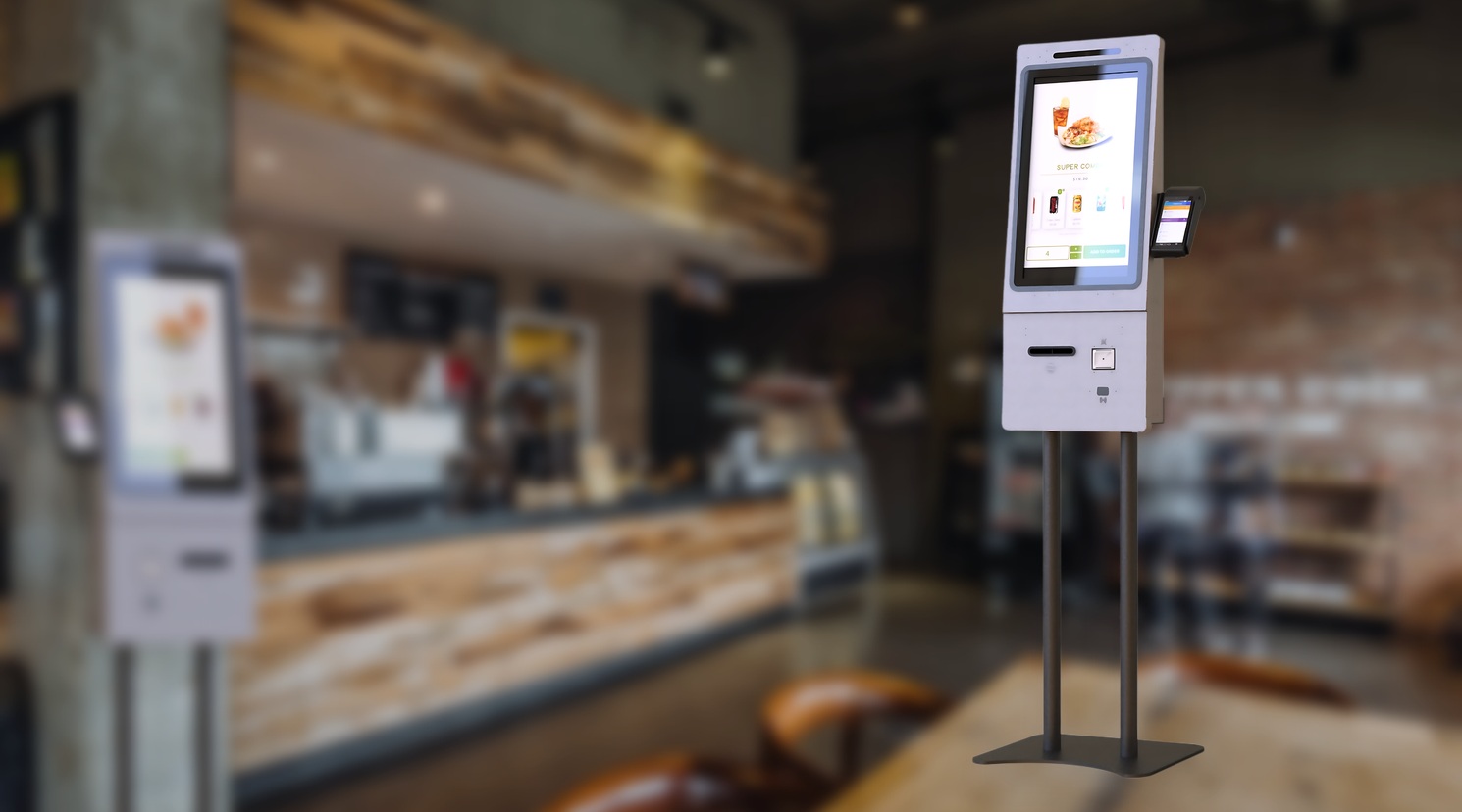

Mersin helps businesses shorten queues and guide customers through product selection, order review and payment in a simple digital flow. Its portrait touchscreen creates a clear and comfortable interaction area for everyday self-service use.

Mersin

Integrated Payment and Peripheral Support

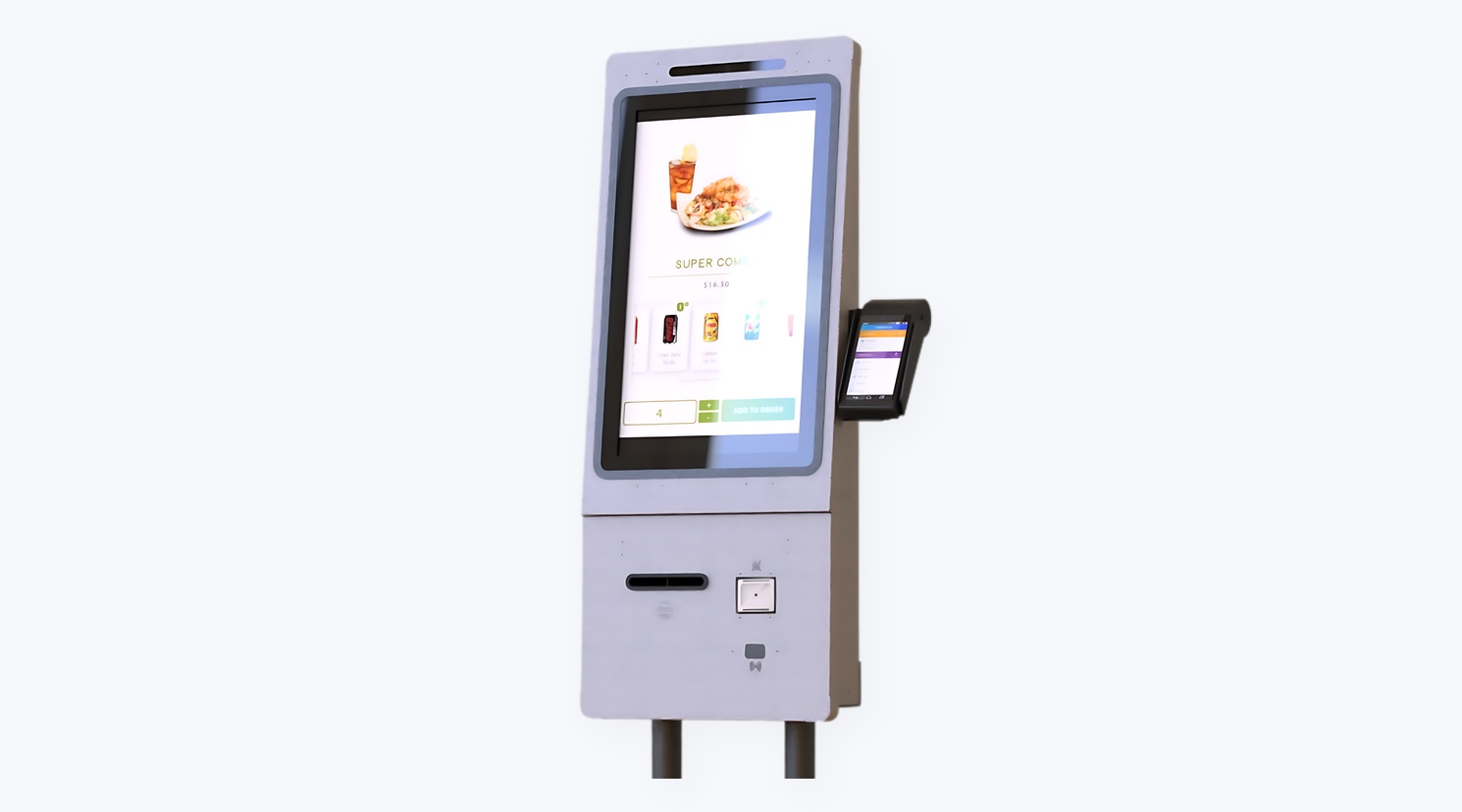

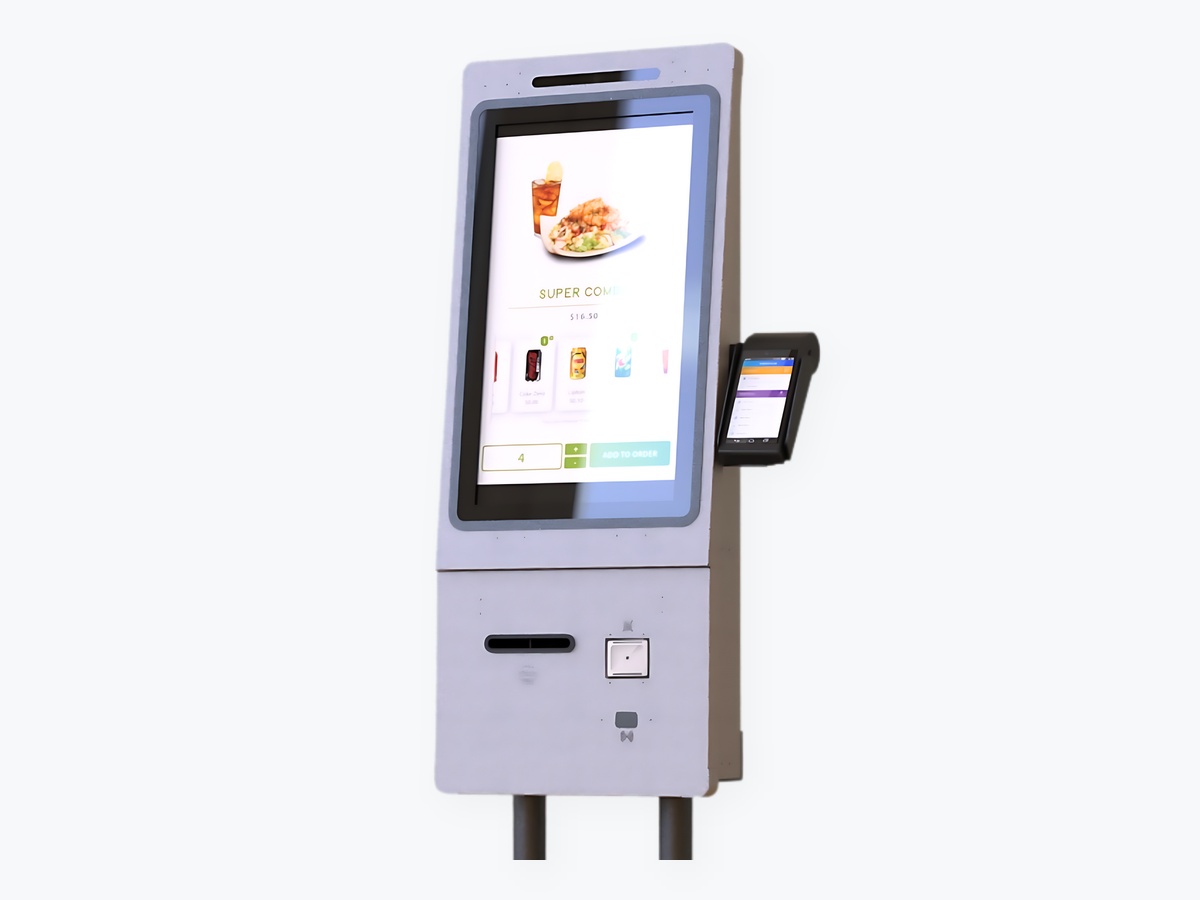

The kiosk can be configured with POS, thermal printing, barcode reading, NFC and camera support. By bringing essential transaction hardware together in one body, Mersin creates a cleaner and more reliable service point.

Mersin

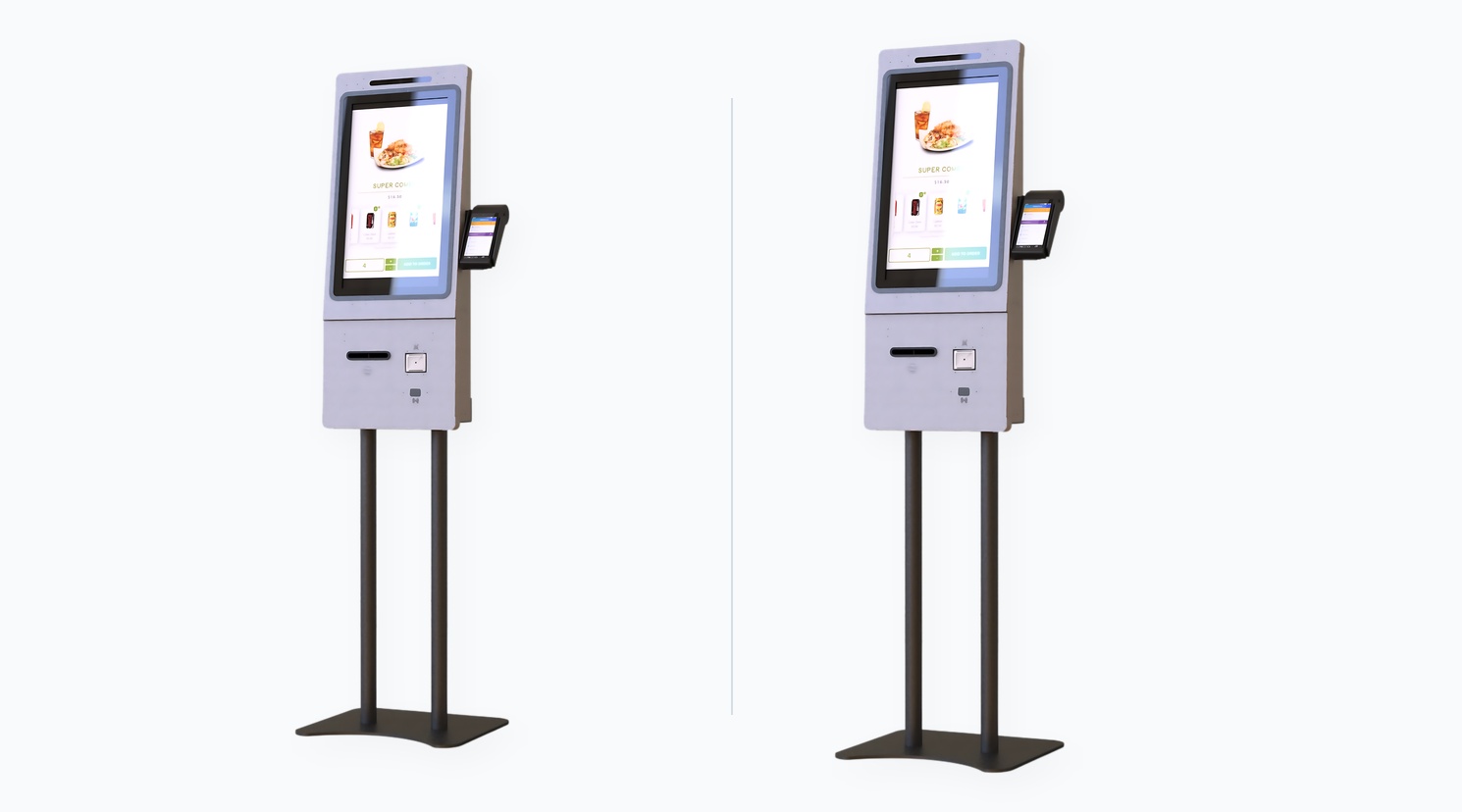

Two Size Options, One Consistent Design

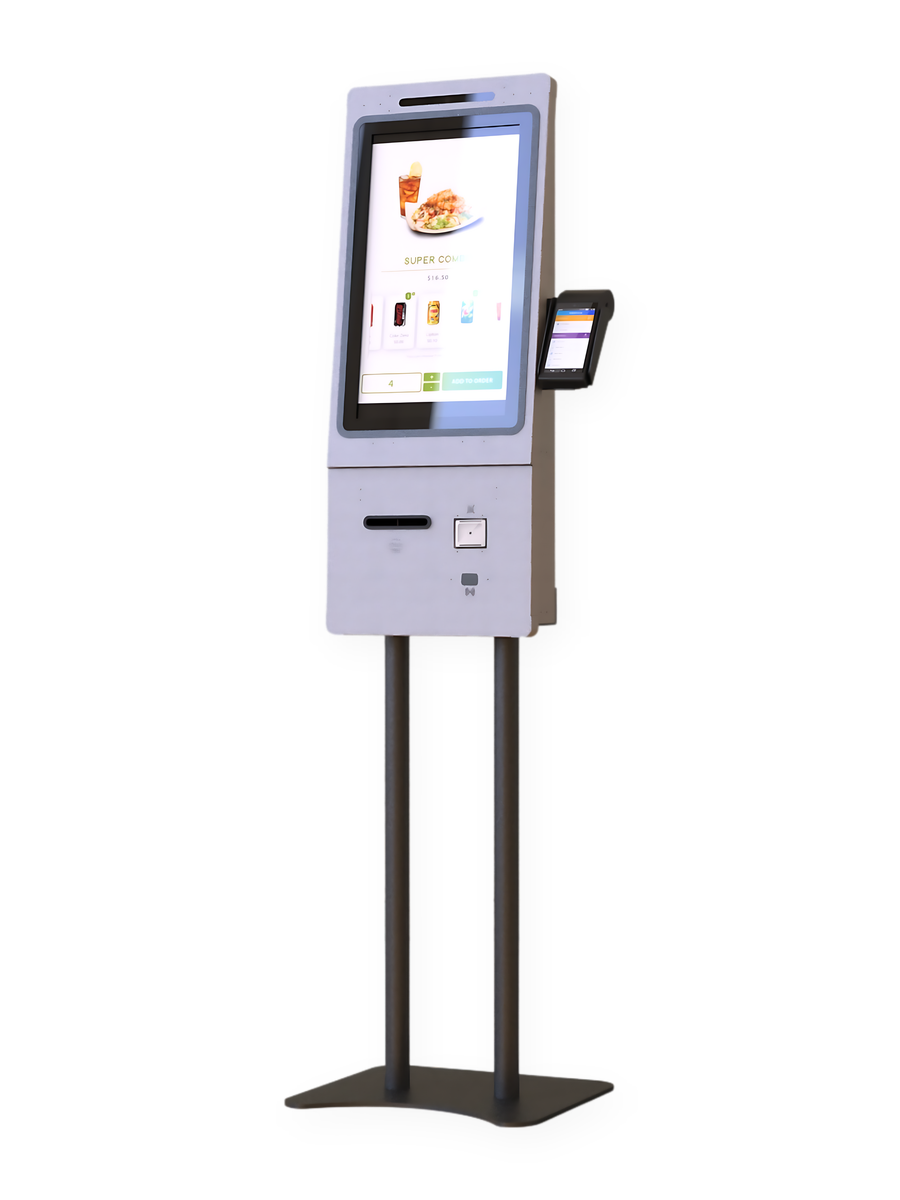

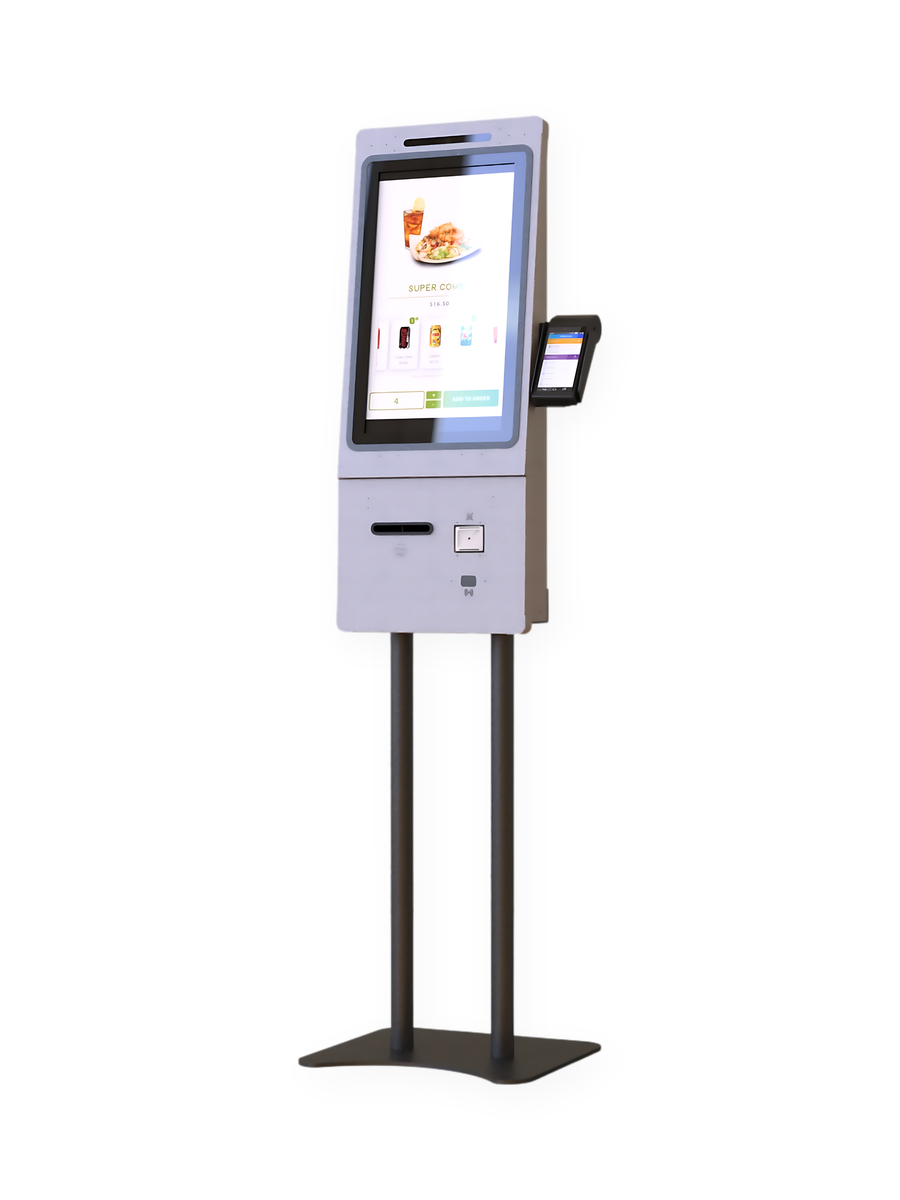

Available in 21.5-inch and 23.8-inch sizes, Mersin offers flexibility for different store layouts and visibility needs. Its modular structure also allows branding, accessory and software adaptations for project-specific requirements.

Mersin

Model Code

21.5": KSMA215MA
23.8": KSMA238HA

Model Code

21.5": KSMA215MA
23.8": KSMA238HA

Panel Size

21.5": 21.5″
23.8": 23.8″

Resolution

1080 × 1920

Brightness (Typ.)

21.5": 500 cd/m²
23.8": 550 cd/m²

Contrast

21.5": 1300:1 (Typ.) (TM)
23.8": 1000:1 (Typ.) (TM)

Viewing Angle (H × V)

178° × 178°

Response Time (G-to-G)

14 ms (G to G)

Active Display Area (mm)

21.5": 476.00 (H) × 268.00 (V)
23.8": 527.04 (H) × 296.46 (V)

Touch Technology

Projected Capacitive

Touch Points

10 points Multi-touch

Glass Hardness

6H (min.)

CPU

Quad Core

RAM

4GB

Storage

32GB

Operating System

Android 11

I/O

HDMI, USB, Ethernet, Wi-Fi

Power Consumption (Avg.)

21.5": 32W
23.8": 35W

Power Requirement

AC 100-240 V~ (+/-10%), 50/60 Hz

Standby Mode

<0.5W

Operation Life

24/7 – 50,000 hours

Working Conditions

Operation: 0-50°C | Storage: -20-60°C

Humidity

10-80%

Unit Size (W × H × D)

21.5": 911 × 370 × 161 mm
23.8": 961 × 407 × 151 mm

Unit Package Size

21.5": 980 × 503 × 246 mm
23.8": 1030 × 540 × 246 mm

Product Weight

21.5": 30 kg
23.8": 35 kg

Package Weight

21.5": 35 kg
23.8": 40 kg

Stand Size

21.5": 783 × 100 × 50 mm
23.8": 732 × 240 × 97 mm

Stand Package Size

21.5": 845 × 475 × 195 mm
23.8": 800 × 210 × 420 mm

Stand Weight

21.5": 15 kg
23.8": 20 kg

Audio (Optional)

8Ω, 5W × 2

Thermal Printer

80 mm

1D/2D Barcode Reader

640 × 480p, 30 scans/sec

Customization

Floor stand, logo and brand color customization

Package Contents

Easy Installation Guide, Warranty Document, Power Cable
